STEERING WHEEL
Quick Release Snap-Tronic

The Snap-Tronic features the same SFI-certified coupling and uncoupling system as the Snap-Fit family, with the addition of integrated electronics. This eliminates the need for external wiring to connect buttons or switches on the steering wheel, supporting up to 4 separate inputs. The connection includes a total of 5 pins.

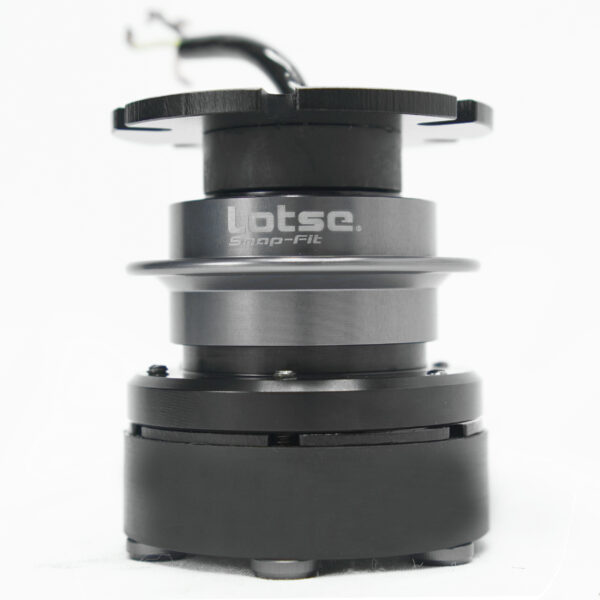

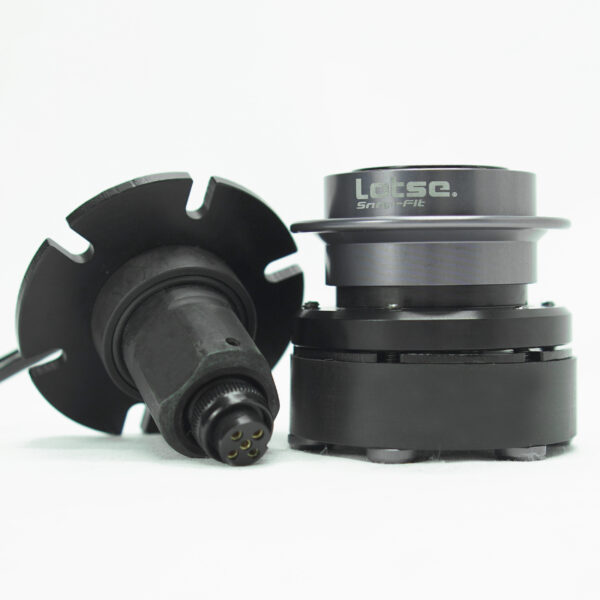

Constructed entirely from aluminum, the unit consists of two main parts: the body, which attaches to the steering wheel (available in black or graphite), and a steel pinion, which mounts to a steering hub adapter (compatible with 6x64mm to 6x70mm bolt patterns). The locking mechanism utilizes a 3-ball detent system and is SFI-approved.

Attention: The Snap-Fit is a product designed and built exclusively for use in competitive racing.

Dimensions and Specifications:

Total assembled length: 90mm (3.4 Inch)
Body bolt pattern (steering wheel side): 6 x 64mm (brazilian)
Pinion bolt pattern (fixed hub side): 6 x 64mm to 70mm (brazilian and european)
Body material: Aluminum
Pinion material: Nickel-plated steel

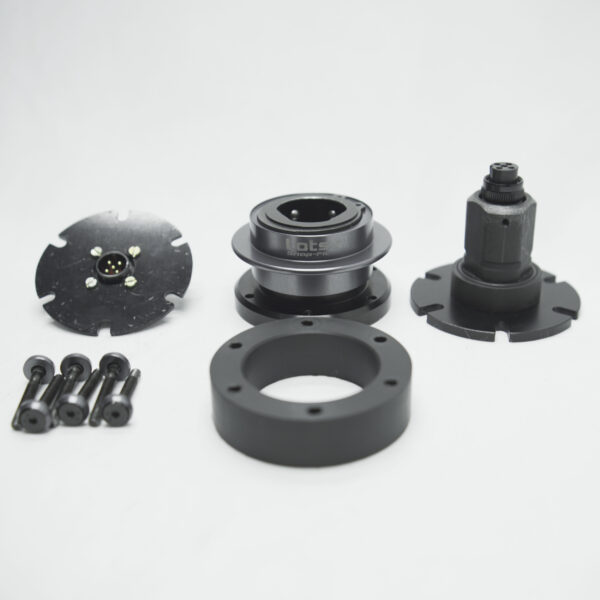

Included Components:

1x Body

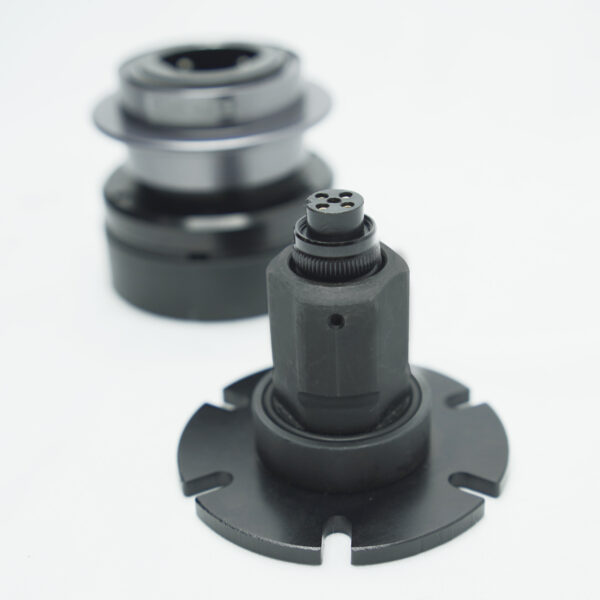

1x Pinion (with integrated female connector and crimped wiring harness)
1x Disc with attached male connector
1x Nylon spacer
6x Mounting screws

Mounting Compatibility:

Steering wheel side: Steering wheels with a 6 x 64mm bolt pattern
Hub side: Standard domestic and European fixed steering hubs

Electronics Compatibility:

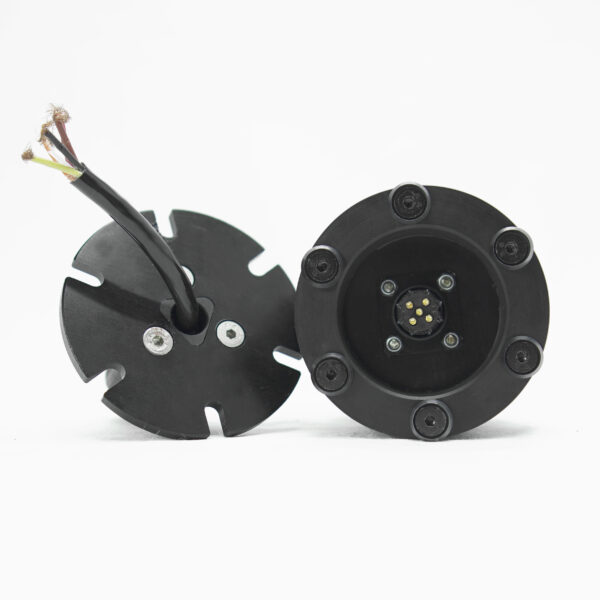

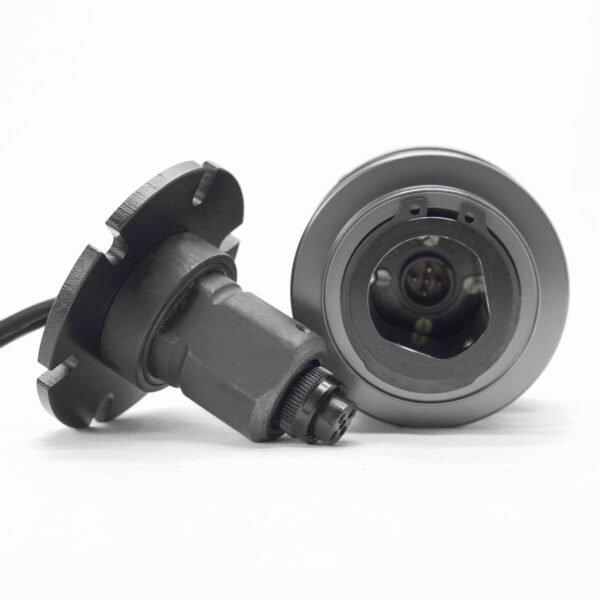

The Snap-Tronic features an internal 5-pin Mil-Spec style male/female connector system, allowing for any configuration that utilizes these 5 pins.

User Manuals:

SnapFit Manual

Product Code and Variations:

SNF-5V – Snap-Tronic
